Behringer WING COMPACT 48-channel Digital Mixer

Behringer WING COMPACT 48-channel Digital Mixer

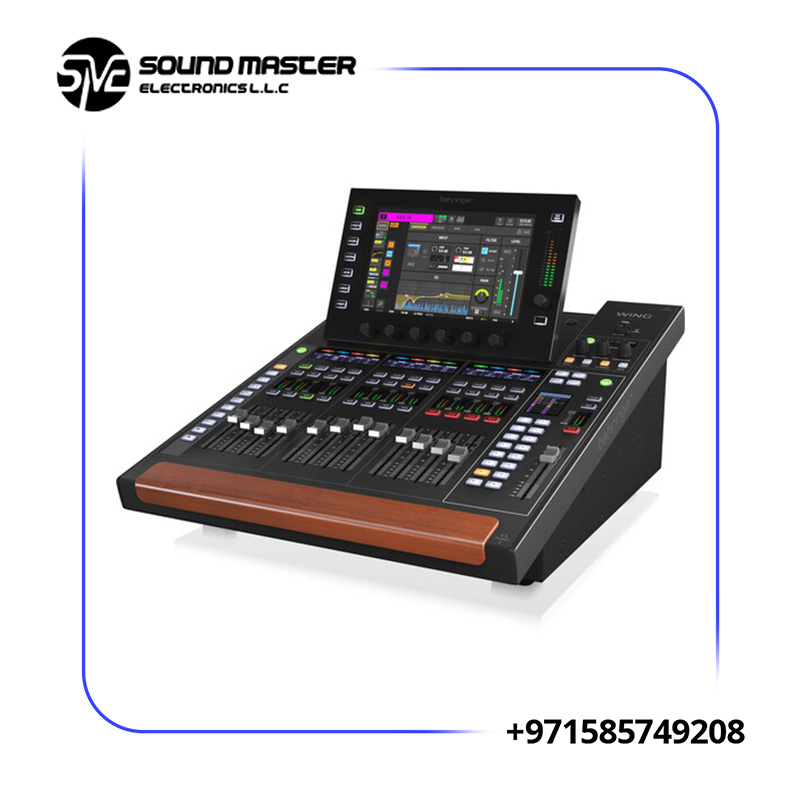

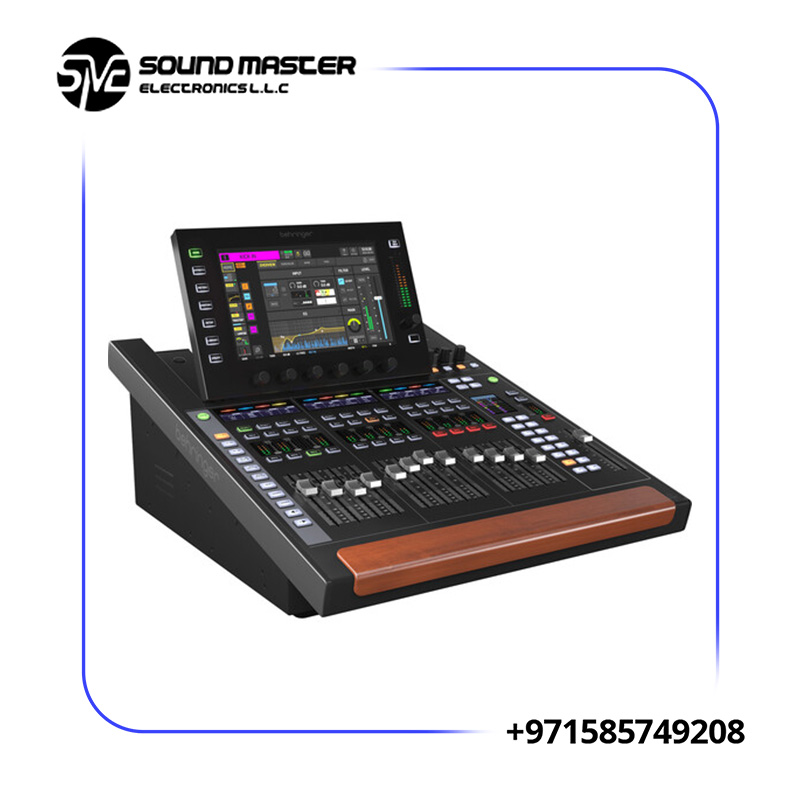

Introducing the Behringer WING Compact in sleek black finish — a pro‑level digital mixing console that brings the power and flexibility of the full‑sized WING into a more compact, rack/table‑friendly format. Built for live sound, recording, broadcast and installation use, the WING Compact combines high‑quality mic preamps, deep DSP, networking expansion and intuitive hands‑on control into one versatile surface. With 24 built‑in Midas PRO mic pres, a 10.1″ capacitive touchscreen, 13 motorised 100 mm faders, and support for up to 144 sources via AES50, this console is engineered to handle demanding multi‑channel workflows while remaining compact.
Whether you’re running FOH for a medium‑sized event, doing live multitrack recording, or integrating into a fixed installation, the WING Compact gives you serious routing, effects and control capability — without the full footprint of a large sound desk.

Key Features

• 24 award‑winning Midas PRO mic preamps onboard for pristine input quality.

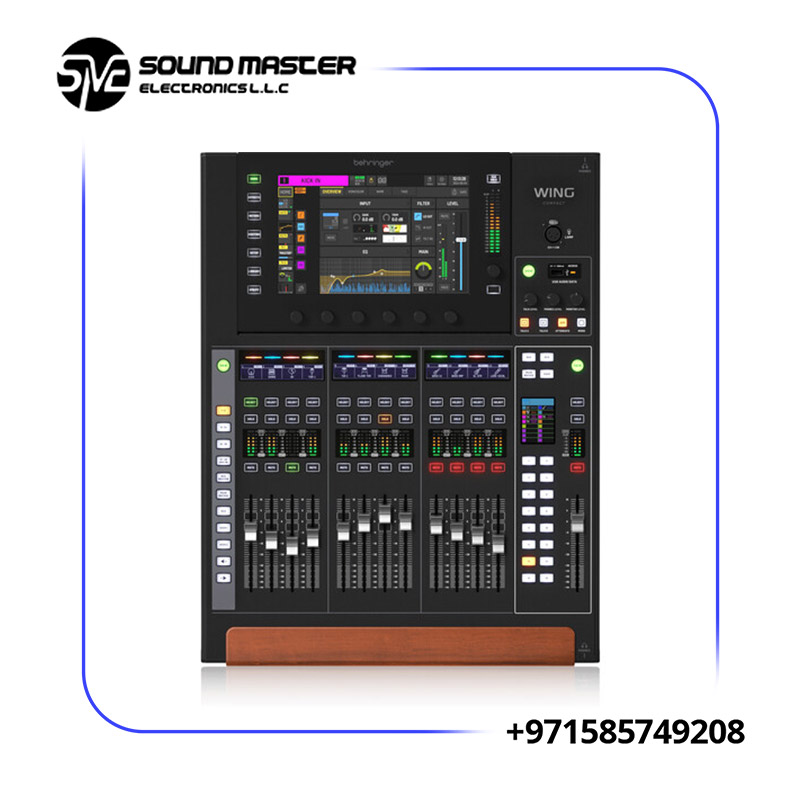

• 13 motorised 100 mm faders divided into three configurable sections for flexible hands‑on control.
• Large 10.1″ capacitive multi‑touch display with adjustable swivel for intuitive editing and navigation.
• 48‑channel USB audio interface built‑in (48 in / 48 out) for direct DAW connectivity.
• Dual SD‑card recorder/player for up to 64 channels of recording/playback (ideal for live tracking or virtual sound‑checks).

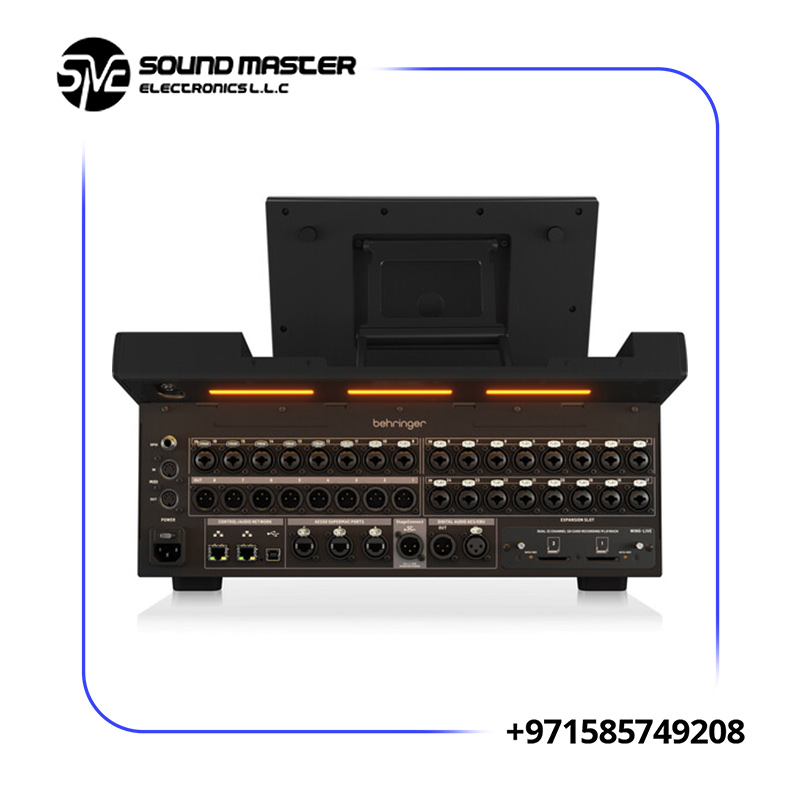

• Three AES50 SuperMAC ports for remote I/O and networked routing (up to 144 input/output channels) — expandable to Dante/SoundGrid/MADI via optional cards.
• 16 true‑stereo FX engines (eight Premium + eight Standard) with over 80 studio‑grade algorithms (Lexicon, EMT, Quantec, etc).
• Flexible channel routing: each channel can be mono, stereo or mid/side with ALT input capability for redundancy or alternate sources.
• Rugged and compact build: designed for installation, live and mobile use, with full‑featured I/O in a smaller footprint.
• Comprehensive bus architecture: 28 buses (16 stereo aux, 8 stereo matrices, 4 stereo mains) enabling complex routing for FOH, monitors, broadcast and more.
