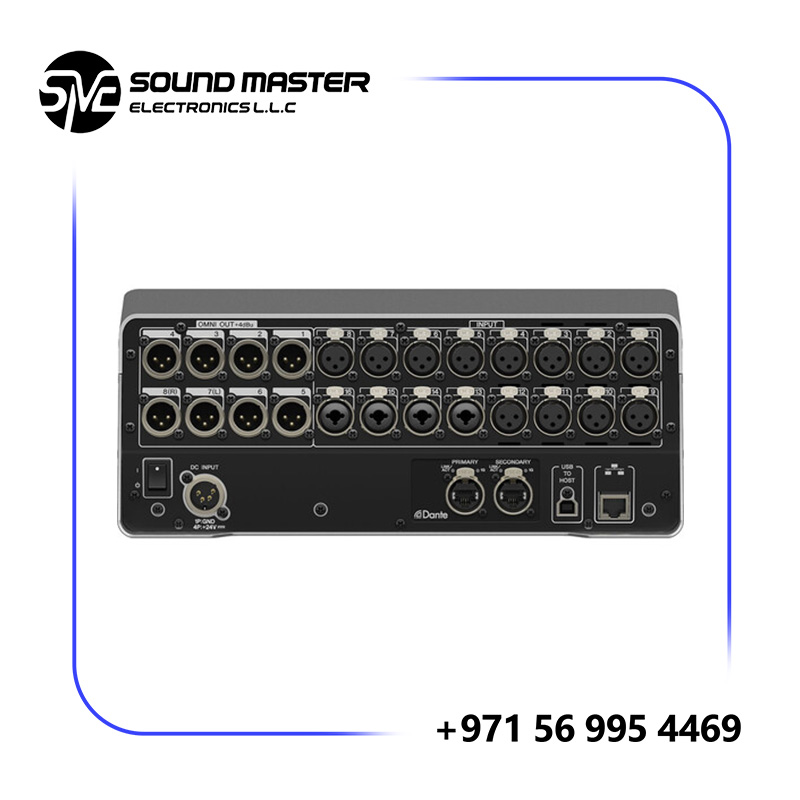

Yamaha DM3 Digital Mixing Console with Dante

Yamaha DM3 Digital Mixing Console with Dante

The Yamaha DM3 Digital Mixing Console with Dante is a compact, professional-grade, Dante-equipped digital mixer designed for live performance, studio recording, streaming and installation work. Despite its small footprint, the DM3 packs a powerful 22-channel mixing engine, flexible routing, high-quality preamps and modern digital workflows — making it an ideal “all-in-one” solution for bands, houses of worship, live venues, broadcast and content creators.

With a space-saving design combined with full digital flexibility, the DM3 brings the power of large-format consoles into a portable package — giving you the freedom to mix live sound, multitrack record, or stream with minimal setup.

Key Features

• Compact & portable — small footprint (320 × 140 × 455 mm) and light weight (6.5 kg) makes it easy to transport for gigs, mobile rigs or tight installations.
• Full 22-channel mixing — supports 16 mono channels + 1 stereo + 2 FX returns.
• Dante networking built-in — 16 in / 16 out Dante audio over network, ideal for multi-room systems or integrated audio networking.
• USB multitrack interface — 18 in / 18 out USB audio interface to connect to DAW, enabling direct recording/playback.
• High-quality preamps & 96 kHz sampling — studio-grade sound quality, ensuring clear, detailed audio for vocals, instruments, and live sound.
• 9-inch multi-touch screen + motorized faders — intuitive, modern user interface with 9 motorized faders and a “Touch & Turn” rotary controller for fast, hands-on mixing.
• Flexible mixing & routing — 1 stereo bus, 6 mix buses, 2 FX buses, 2 matrix buses (input-to-matrix supported) for creative routing, monitor mixes, side-rooms or streaming feeds.
• Built-in DSP effects & processing — 18 effect types, channel processing (EQ, compression, gate/ducking, delay), plus GEQ on mix & stereo buses — ready for live shows or recordings without extra outboard gear.
• Recording & streaming ready — record multitrack to DAW or 2-track directly to USB, and route separate mixes (e.g. live show + stream) using flexible bus/matrix configuration.
• Remote control & software integration — includes compatibility with control apps (e.g. Editor, StageMix, ProVisionaire) on PC or mobile devices; works as control surface for DAW (transport, fader control, plugin automation).
• Quick setup & efficient workflow — “Quick Pro Presets” for common mic/instrument setups and flexible patching make system configuration fast and user-friendly
